V3 Sound – Development

ONE-STOP SHOP FOR ALL YOUR SOUND PROJECT REQUIREMENTS.

OUR PORTFOLIO INCLUDES: Ready-to-use sound banks | Custom DREAM IC | Quick turnaround.


The heart of our sound bank are samples that are based on agreements of licensing rights with the representatives of studio software companies.

You can find audio demos below for a first impression.

To test the quality of the sounds in your office you need our Developent hardware. This is a stand alone MIDI sound expander which can be loaded with the sounds via USB-Stick. More on this hardware below.

Contact us for more information. office@v3sound.com



GRAND PIANO SOUNDS

01001 Grand Piano Steinway-D

8 Sustain layer | Pedal down resonance layer | Sympathetic resonance | Note-off-Samples | Effects Pedal, Strings noise

Audio demo - YOUTUBE

01013 Grand Piano Bösendorfer Imperial 290

12 Sustain layer | Pedal down resonance layer | Sympathetic resonance | Note-off-Samples | Effects Pedal, Strings noise

Audio Demo - YOUTUBE

01118 Grand Piano Steinway V

12 Sustain layer | Pedal down resonance layer | Sympathetic resonance | Note-off-Samples | Effects Pedal, Strings noise

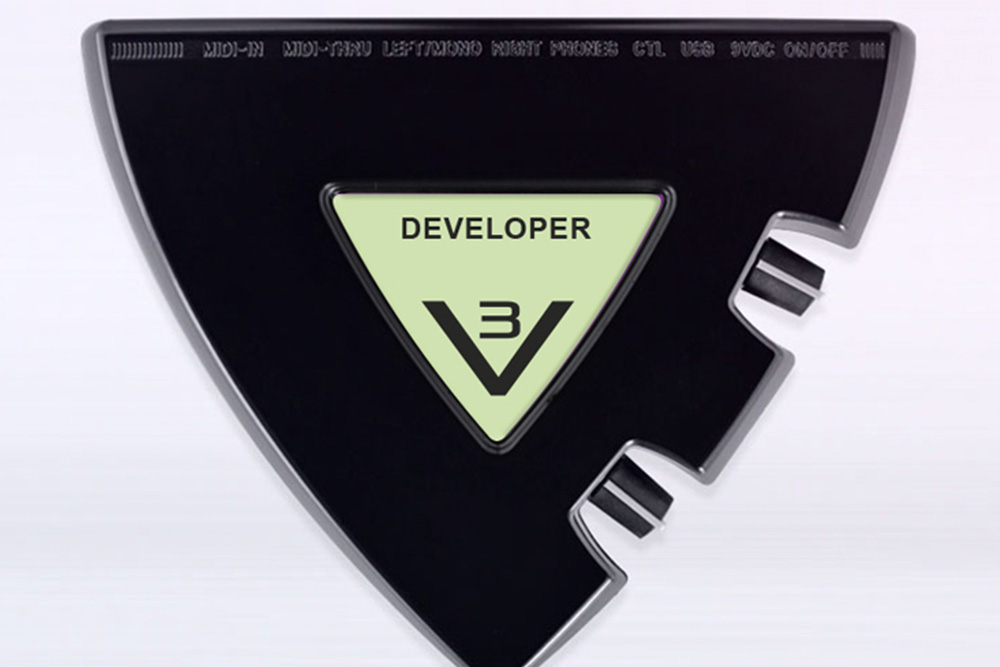

DEVELOPMENT HARDWAREV3 Triangle

DEVELOPMENT HARDWARE SPECIFICATION

1. Master Volume
2. Master Reverb
3. Power On
4. Power 9VDC
5. USB Host

USB Audio Class 1 compliant
Our device supplies any USB MIDI keyboard with 100 mA. If your keyboard does not need more than 500 mA, you do not need an extra power supply for your keyboard.

6. Pedal

This port connects the sustain pedal through MIDI channel 1. Use a controller pedal for the half pedal function (ex. ROLAND DP10) to create varying lengths of sustained resonance.

7. Headphones
8. Audio out

STEREO
MONO
AUX OUT
Triangle devices allow for up to 4 audio outlets.
For more information on how to use these optional audio output 3 & 4, please see the manual.

9. MIDI-THRU

MIDI connection to another MIDI device.

10. MIDI-IN

Standard MIDI-IN
USB and MIDI-IN can be used simultaneously.

Measurements

12 cm (L) x 12 cm (W) x 6 cm (H)

Weight

Weight: 0.21 kg

TONE GENERATOR DREAM CPU SAM5716B-LA

256-voice polyphony
16 MIDI channels – multi-timbral
Main reverb and chorus effect
2 MFX insert multi-effects

MEMORY

4 GB flash memory – power up and play
